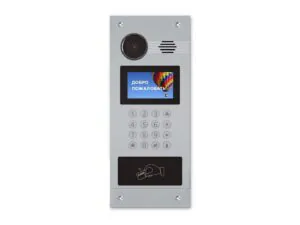

AA-07FBV SILVER
AA-07FBV is a multi-person outdoor panel with face recognition, which made it possible to make calls from this device to both coordinate matrix intercoms and IP intercoms.
In fact, the hybrid BAS-IP panel supports simultaneous operation with three systems: directly with the BAS-IP digital IP system, with VoIP telephony systems operating via SIP, and a coordinate system, for example, Vizit (direct control of switching units is used) or Cyfral (subject to replacement switching blocks Tsifral KMG-100 and KMP-100 to Vizit BK-100 blocks).
Price valid only in the e-shop
3 People watching this product now!
Local Pick up (Tuuliku Tee 4)
0€
Parcel Machines (Itella Estonia)
2.99€
Parcel Machines (DPD Estonia)
6.10€
Payment Methods:
GENERAL CHARACTERISTICS
Panel type
Multi-apartment
Display
4.3″ TFT color with backlight
Camera
1/4”, camera direction adjustment
Viewing angle
110° (horizontal)
Camera Resolution
2.0 MP
output video
HD (1280×720), H.264 Main Profile, BaseLine Profile
Night illumination
6 LEDs
Minimum illumination
0,01 LuX
IR code
IK07
Degree of protection
IP65
Temperature regime
-40 – +65 ° C
Permissible humidity during operation
0% – 86%
Permissible storage humidity
0% – 60%
Power consumption
6.5 W, standby – 3.6 W
Nutrition
+12V (+8% -4%)
Frame
Metal
Color solution
Silver gray
panel size
155×375×55mm
type of instalation
Mortise,
surface-mounted with BR-AA
Keyboard type
Backlit mechanical buttons
FUNCTIONAL CAPABILITIES
Interface
Russian/English, WEB-interface
Opening the castle
• From monitor
• Identification by face recognition
• By pin code
• By QR code
• By guest link
• By map
• From BAS-IP Intercom application
• Identification by face recognition
• By pin code
• By QR code
• By guest link
• By map
• From BAS-IP Intercom application
• From BAS-IP UKEY application
• By API
• By API
Access control
• Face Recognition Identification
• UKEY (EM-Marin/MIFARE®/NFC/Bluetooth)
• Multi-Factor Authentication
• UKEY (EM-Marin/MIFARE®/NFC/Bluetooth)
• Multi-Factor Authentication
Face recognition identification
10 000 faces
Number of identifiers in the panel memory
20,000
Integration with ACS
Output WIEGAND-26, 32, 34, 37, 40, 42, 56, 58, 64 bits
Type of coordinate matrix systems supported
• Vizit (direct control of switching units is used)
• Cyfral (subject to replacement of switching units Tsifral KMG-100 and KMP-100 with Vizit BK-100 units)
• Cyfral (subject to replacement of switching units Tsifral KMG-100 and KMP-100 with Vizit BK-100 units)
Shortcut buttons
Concierge call button
Number of ringtones
4 polyphonic melodies
Authentication
Separate password for settings, WEB-interface
Talk mode
double sided
Support for coordinate matrix systems
• No video transmission to these systems. When calling subscriber devices in coordinate systems, only sound is transmitted.
* Note: To receive video in coordinate matrix systems, you should use external analog video sources (additional analog cameras or RTSP-CVBS transcoders)
* Note: To receive video in coordinate matrix systems, you should use external analog video sources (additional analog cameras or RTSP-CVBS transcoders)
Additionally
• Link software support
• SIP P2P
• Embedded relay
• Open API
• SIP P2P
• Embedded relay
• Open API
