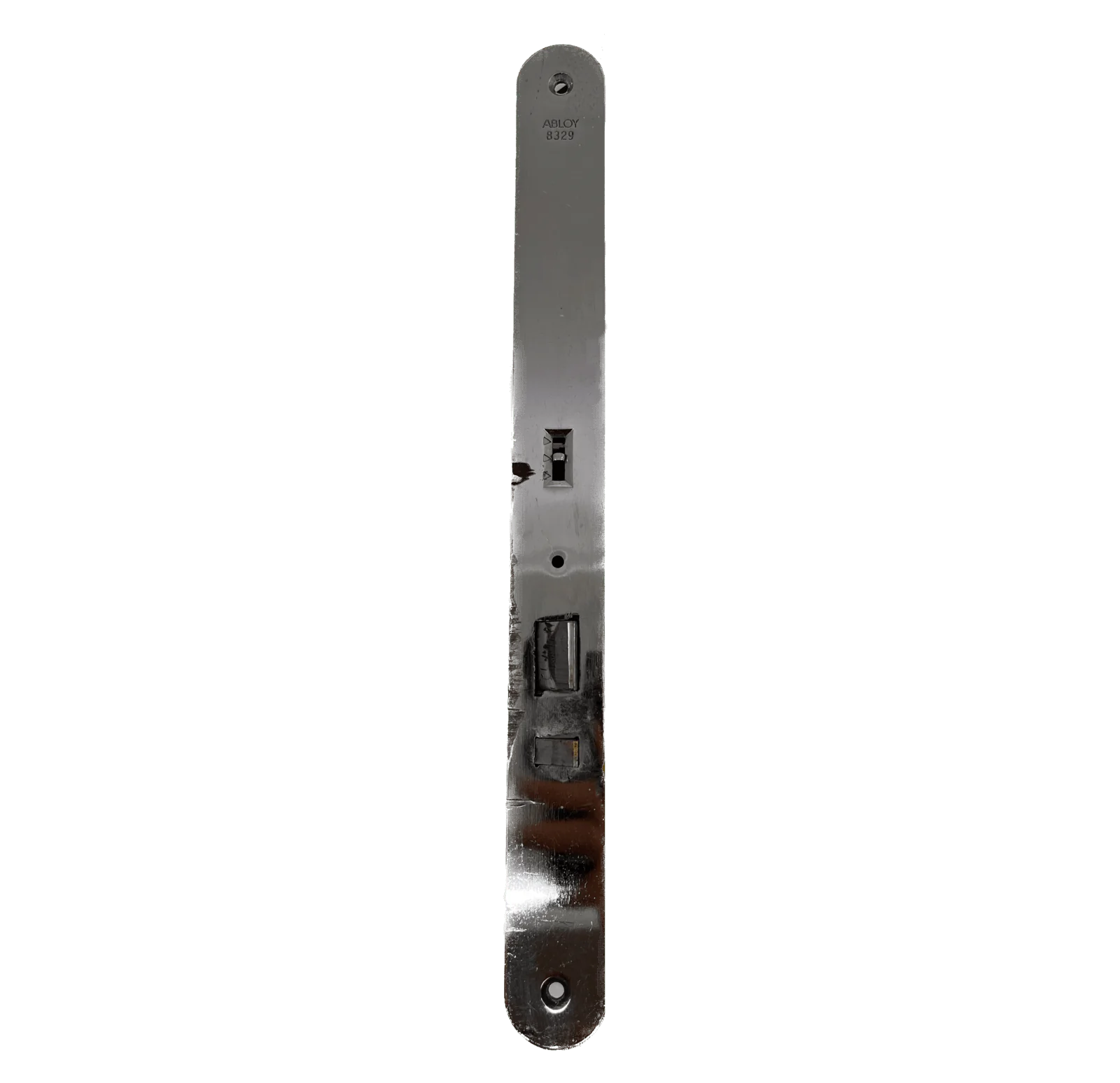

Functionality of ABLOY 8329:
- Night mode: the bolt comes out to 14 mm and is fixed.
- Day mode: The bolt is at 14 mm but not fixed, the handle opens the lock.
- The deadbolt retracts inside the case from the opening impulse.
- Rigel is retracted by the motor and comes out from spring force.
- 8329 is suitable for locking remotely operated gates and entrance doors of shopping centers, residential buildings, etc.
- A lock is well suited for use with access control systems and is compatible with door automatics.
- EL807: lock version 8329 for fire doors
- The deadbolt is not retracted inside the lock body by the opening pulse, but the pulse releases the deadbolt, after a set delay time, for opening from the handle.
- If there is no opening impulse, the ABLOY 8329 lock is in night mode.
ABLOY 8329 TECHNICAL SPECIFICATION
- Operating voltage 24 VDC. ± 15%
- Maximum current 0.3 A
- Adjustable delay 1…20 sec.
- Temperature -20°C…+60°C
- Transom exit 14 mm
- The distance from the front strip surface to the middle of the cylinder is 30 mm
- Cylinder 30 mm
- Front strip 32 mm
- Rod 8 mm
- Oval Scandinavian-type cylinders or Finnish type
- Locking bar 4613 / 4614
- Cable EA212 (not included)

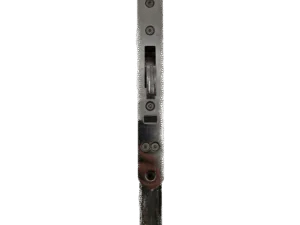

- Connection cable EL650/EL651 > 8329 EA204
