Description:

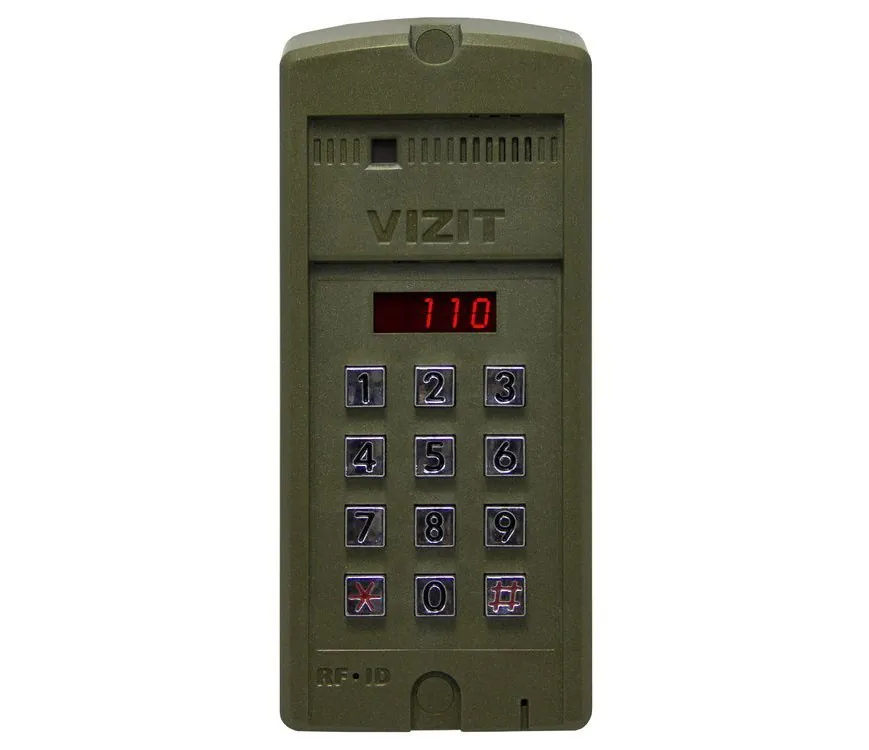

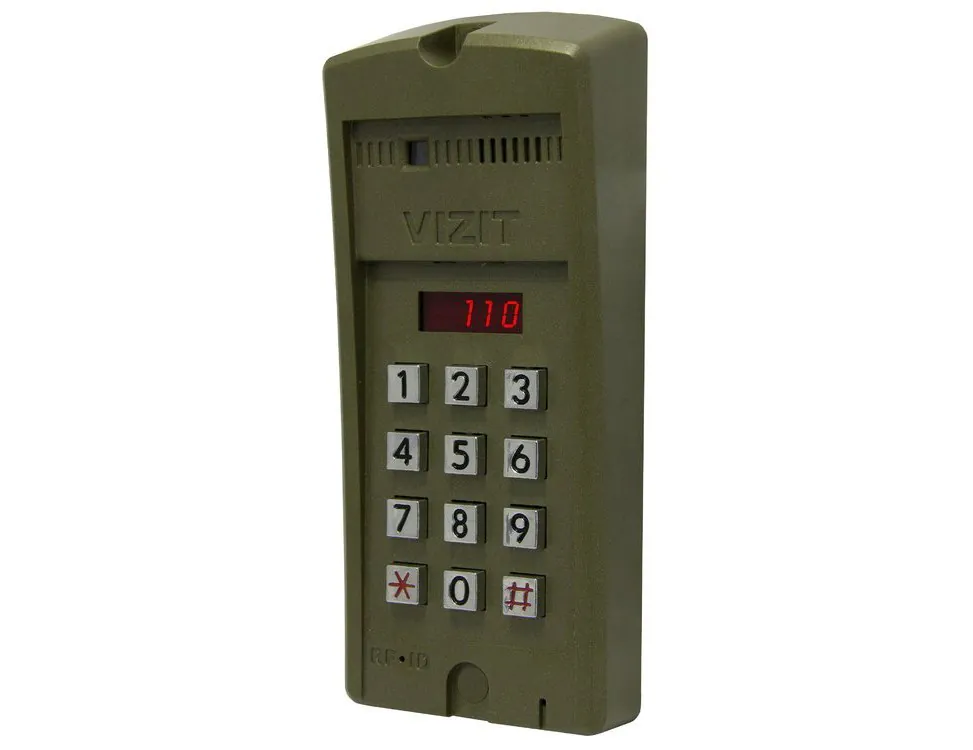

Doorphone outdoor panel BVD-SM110RCP
The outdoor panel BVD-SM110RCP is used together with the power supply unit BPD18 / 12-1-1 as an integral part of the VIZIT multi-apartment video on-door speakerphone.
number of subscribers – up to 100;
duplex speakerphone;
visual control of the situation in front of the call unit;
built-in TV camera with “Day-Night” function (PAL, 700 TVL, 0 Lux, PINHOLE 90 ° lens);
IR illumination for a TV camera;
4-digit LED display;
keyboard backlight;
built-in VIZIT-RF2 key reader (RFID-125 kHz EM-Marin key fob);
memory for 600 keys VIZIT-RF2 (RFID-125 kHz);
number of keys for one apartment number – 6;
work with the VIZIT concierge console;
the body is made of impact-resistant plastic “polycarbonate”, resistant to weathering;
overall dimensions, mm, (WxHxD) – 77x179x36;
installation option – invoice;
supply voltage, V: 22 ± 4;
power consumption, W, no more: 5;
operating temperature range, ° С – from minus 30 to plus 45.
The operating instructions (passport) of the product are given on the additional technical information page:
The outdoor panel BVD-SM110RCP is used as part of multi-apartment video on-door speakerphones VIZIT and provides two-way communication between the visitor and the subscriber, visual monitoring of the situation in front of the call unit, as well as opening the entrance door lock – from the apartment in conversation mode by pressing a button on the subscriber device, using VIZIT-RF keys outside entrance, by pressing the EXIT button from inside the entrance. It is recommended to use the power supply unit BPD18 / 12-1-1 to power the call unit and lock.
It is recommended to use electromagnetic locks VIZIT-ML240, VIZIT-ML300, VIZIT-ML400 or electromechanical locks with a winding resistance of at least 10 ohms.
It is forbidden to use electromagnetic locks with winding resistance less than 20 Ohm, as well as without demagnetizing circuits.
To leave the room (when using an electromagnetic lock), it is recommended to use the EXIT 300M, EXIT 500 buttons with emergency control circuits for the electromagnetic lock.
To connect VIZIT subscriber devices to the entrance line of the intercom, switching units are used. To connect the UKP, it is possible to use switching units BK-4 (M), BK-10, BK-30 (M), BK-100 (M). To connect VIZIT monitors together with the listed switching units, you can use the RVS-4 video signal splitter or use the switching units with a built-in BK-4MV video signal splitter. The combined use of different types of switching units is possible.
