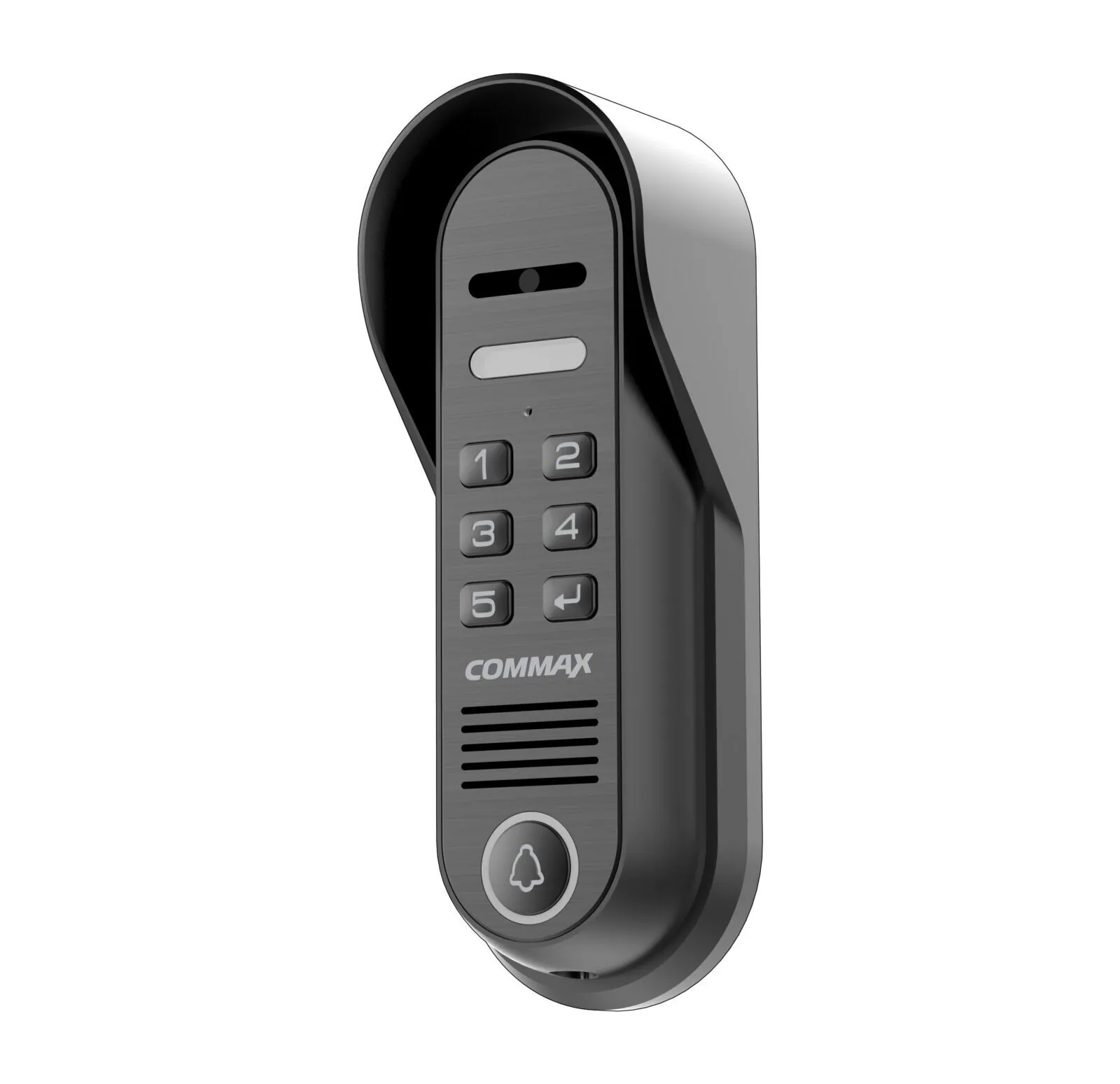

The Commax DRC-4CPNK call panel in anti-vandal manufacture performs all the necessary functions: a call to the intercom, duplex voice communication, and image transmission from the video camera to the intercom screen. An electric lock control output is built into the body of the provided product. The main advantage of the model is the presence of a coded keypad, which is used to open the lock without using a key.
In order to maintain the best visibility, a LED backlight is activated, which turns on automatically at night when a call is made. A camera based on a lens with fixed focus and a color 1/3″ CMOS matrix with a resolution of 0.52 Mp and a horizontal/vertical field of view of 68°/55°. Sound adjustment is provided. The panel interacts with any models of color intercoms and systems from different companies.
The power supply of the DC 12V panel is made from the screen of the intercom and does not provide for a separate laying of the power wire. A rugged black metal case with an operating temperature within -40°C~+50°C allows the panel to be used in difficult circumstances while being resistant to mechanical damage. The panel is completed with a protective peak, angular, and assembly panels.
| Device type | Color video panel |
|---|---|
| Number of subscribers | 1 |
| Camera resolution | 0.52 MP |
| HD camera resolution | Not |
| Camera type | 1/3″ CMOS |
| Signal standard | NTSC, PAL |
| Horizontal viewing angle | 68° |
| Viewing angles | 68° horizontal and 55° vertical |
| Backlight | LED |
| Backlight range | 1 m |
| Intercom-panel connection | 4-wire |
| Opening the castle | from the monitor |
| Adjustments | volume |
| Food | DC 12 V |
| Equipment | protective canopy, mounting plate, bracket for turning the panel at an angle of 30° |
| Operating temperature range | from -40 to +50 °C |
| Assembly | Overhead |
| Corpus material | Metal |
| Case color | black |
| The weight | 445 |
| dimensions | 164 x 59 x 42 mm |
| Manufacturer’s Warranty | 12 months |
