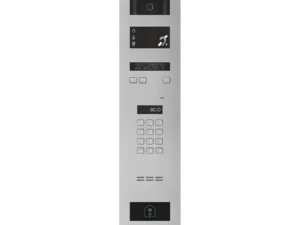

Digital doorphone INSPIRO 1+

Index
INSPIRO 1+ (G2) (Master/Slave unit)
INSPIRO 1+ (Master unit)
INSPIRO 1S+ (Slave unit)

Description
Digital door intercom with keypad access control

Execution
2 mm flat front panel with backlit brushed stainless steel buttons

Available language versions

• PL-EN-DE-FR

• PL-EN-DE-SV

• EN-LT-IT-HU

Modules
Keypad lock – Individual 4-digit access code for each apartment

Display
Heated LCD

Maximum number of users
Up to 1020 rooms

Installation method
Flush-mounted
(optional mounting box: INS-PS NT)

Dimensions (mm)

• Panel: 111 × 229

• Flush mounting box: 92 × 210 × 31.5

Installation type
Digital: 2 wires

Line length
Max. 1000 m

Power supply
15 V DC / 172 mA or 12 V ± 0.5 V AC

Power consumption in standby mode
~0.66 W

Outputs

• 2 × screw terminals “ELOCK”: for connecting a traditional electric strike (max 1 A), fail-safe lock (max 0.5 A), or CDN-PK relay module (max 5 A)

• 2 × screw terminals: for audio signal – “LINE+” and “LINE– (GND)”

• 2 × screw terminals: for second relay output – “N” and “NO” (max 2 A, 30 VDC) – only on Master unit

Inputs

• 4 × screw terminals: power connection – “+DC” and “GND”

• 1 × screw terminal “INPUT”: for a normally open (NO) button – activated by shorting to GND (e.g., external door release button)

• 1 × screw terminal: audio signal from previous panel (Master Line) – “ML+” (slave only)

• 2 × “EXTMOD” sockets for optional modules

Accessibility features

• Backlit keypad buttons, optionally Braille-compatible

• Acoustic and optical signaling for panel functions

• Automatic or remote door unlocking (via button) without answering a call

• Option to connect an additional acoustic or optical signaling device indoors (CDN-U)

Features

• Weather-resistant and vandal-resistant

• Configurable 6-digit apartment numbers

• 4 independent code tables

• Supported codes:

  • 1020 tenant codes (4-digit)

  • 5 administrator codes (4- or 6-digit)

  • 1 installer code (8-digit)

• Programmable main screen message (up to 30 characters)

• Support for up to 6144 proximity elements

• Each room can be assigned any number of proximity elements from the pool of 6144

• Unlimited proximity elements for administrator and installer access

• Adjustable maximum talk time (40–120 seconds)

• Support for a wide range of expansion modules to enhance functionality

• Master/Slave/Multimaster system support

• Optional SW4S-DIN module required to support 1020 rooms

• Unlocking electric strike or additional relay output without an active call (via CDN-I/O)

• Home automation control: gates, barriers, lighting, shutters – via keypad, key fob, or receiver. Also without active connection:

  • Gate opening – triple key press

  • External device control (via CDN-I/O module) – triple key press

  • Access permission for external device control can be set per room

• Multiple receivers can be assigned the same number using active receivers

• Wide range of individual configuration options per room

• Intuitive and user-friendly operation and configuration

• Ability to change call number ranges and call groups

• Up to 8 predefined numbers that can be dialed without voice communication

• Automatic door release function per room

• Corridor unlocking function

• Concierge function

• Ability to display a custom message (up to 6 characters) on the screen during call forwarding to concierge

• Adjustable number of door releases per call (1–3)

• Support for various electric and electromagnetic locks

• 8 priority extension numbers with individual call settings

• Call forwarding to extensions

• Programming via PC without external power

• Programming via control panel or PC using USB cable

• Free configuration software available in the “Downloads” section

• Compatible with all digital devices from the following product groups: CDN, Inspiro, and Familio P/PV
