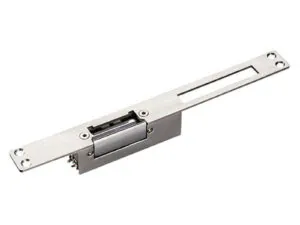

Product Specification Table
Product Parameter | Parameter Description |
---|---|
Lock Size | 250L x 25W x 31H (mm) |
Keeper Material | Stainless Steel |
Static Strength | 350 kg |
Voltage | DC12V (Need Order DC24V) |
Current | NO: 12V/240mA (±10%); 24V/120mA (±10%)NC: 12V/200mA (±10%); 24V/100mA (±10%) |
Feature | Fail Secure (YS-132NO-S); Fail Safe (YS-132NC-S) |
Signal Output | Lock Status Output NO/NC/COM |
Suitable For | Wooden Door, Metal Door, PVC Door |
Surface Temperature | Within +20°C |
Operating Temperature | -10~+55°C (14-131°F) |
Operating Humidity | 0~95% (non-condensing) |
Faceplate Housing | Painted Steel |
Function | Built-out MOV |
Optional Accessories | YS-308 |
Weight | 0.4 kg |
Certification | MA CE-EMC CE-LVD FCC-VOC REACH WEEE |
