MATRIX II MF-I
| iButton (1-wire) maximum line length (m) | 15 |
| Wiegand maximum line length (m) | 100 |
| Tension | 12 DC |
| Current consumption (mA) | 40 |
| Pager | Buzzer |
| Visual indication | 1 x 2-color LED |
| External control of LEDs and buzzer | Yes |
| Operating temperature (° C) | -30 … + 40 |
| Case Material | ABS polymer |
| Dimensions (mm) | 85х44х18 |
Price valid only in the e-shop
Local Pick up (Tuuliku Tee 4)
Parcel Machines (Itella Estonia)
2.99€
Parcel Machines (DPD Estonia)
6.10€
Payment Methods:

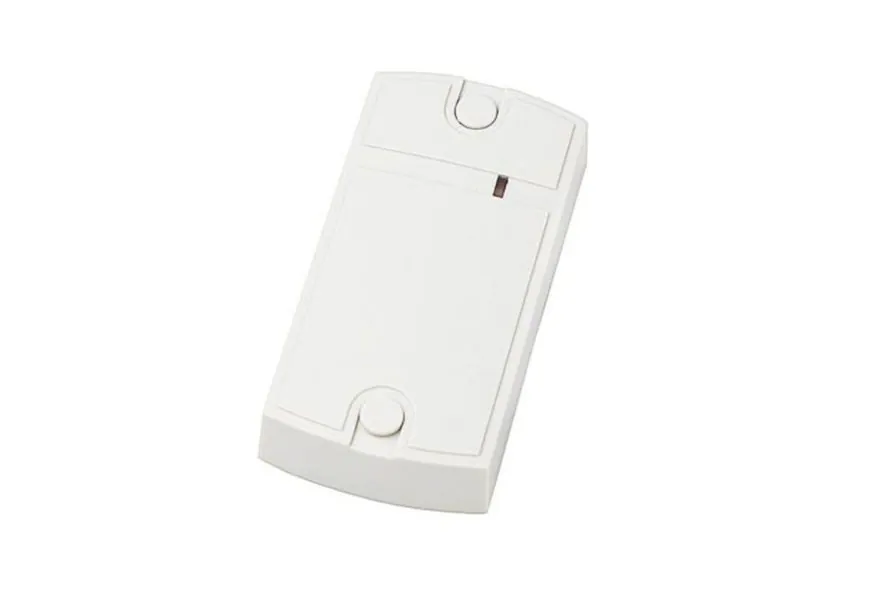

The Matrix II MF-I RFID reader is intended for use in network and stand-alone access control systems. The Matrix II MF reader supports Mifare 13.56 MHz keys and connects to controllers via the ibutton (1-Wire) or wiegand-26 protocol. External control of visual and audible samples is possible without additional connections.
The Matrix II MF reader supports both open (ID read) and protected (ID encryption) modes to access key data. Protected mode for key ID transmission provides protection against copying and cloning. You can change the encryption keys an unlimited number of times. Encryption keys must be created and written using the Iron Logic object map. A description using the Protected Mode Iron Logic object map can be found on the Iron Logic Protected Technology Description page.
| Soobib | ACS reader |
| Operating frequency | 13.56 MHz |
| The basic type | RFID (Proximity) |
| Reader standard | Mifare Classic 1K, Mifare Classic 4K, Mifare ID, Mifare PROX, Mifare ülikerge |
| Reader protocol | iButton (1-wire), Wiegand-26 |
| RFID reading range (cm) | 2-6 |
| Keyboard | No. |
| Anti – vandal case | No. |
| Waterproof and dustproof housing | Yes |
| Key copy protection | Yes |
| Copy protection Type | Iron Logic protected |
