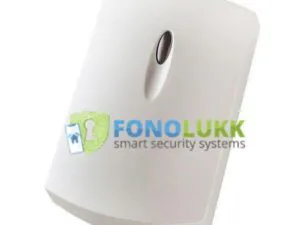

MATRIX III MF-I
| iButton (1-Wire) maximum line length (m) | 15 |
| Maximum Wiegand Line Length (m) | 100 |
| Voltage | 8-18 DC |
| Current consumption (mA) | 50 |
| Bleeper | Buzzer |
| Visual indication | 1 x 2 color LED |
| External control of LEDs and buzzer | Yes |
| Working temperature (° C) | -30 … + 40 |
| Body material | ABS polymer |
| Overall dimensions, mm) | 115х45х22 |
€66.96 inc VAT
Price valid only in the e-shop
Local Pick up (Tuuliku Tee 4)
Parcel Machines (Itella Estonia)
2.99€
Parcel Machines (DPD Estonia)
6.10€
Payment Methods:
RFID reader Matrix III MF-I is intended for use in networked and stand-alone access control systems. The Matrix III MF-I reader supports 13.56 MHz Mifare keys and connects to the controller via the iButton (1-Wire) or Wiegand-26/34/42/50 protocol. There is a possibility of external control of light and sound indication without additional connections and synchronization of two readers.
The Matrix III MF-I reader supports both open (reader) and secure (ID encryption) key data access modes. The secure key transfer mode provides protection against copying and cloning. You can change encryption keys an unlimited number of times. Creation and recording of encryption keys for manufacturing using the Iron Logic Object Card. A description of using Protected Mode with an Iron Logic Sitemap can be found on the Iron Logic Protected Technology Description page.
| goal | ACS reader |
| Working frequency | 13.56 MHz |
| Key types | RFID (proximity) |
| Standard reader | Mifare Classic 1K, Mifare Classic 4K, Mifare ID, Mifare Ultralight |
| Reading protocol | iButton (1-Wire), Wiegand-26, Wiegand-34, Wiegand-42, Wiegand-50 |
| RFID Reading Range (cm) | 3–6 |
| Keyboard | No |
| Vandal-proof housing | No |
| Waterproof dust cover | Yes |
| Key copy protection | Yes |
| Copy protection type | Iron logic protected |
| Synchronization of two readers | Yes |
| Dimensions | 11.5 × 7.5 × 2.2 cm |
|---|---|
| Color | Blue ,White |
