Homepage » Shop » Exit buttons » МС 19В
MC 70A exit button
Exit button MC 70A €25.00 inc VAT
Back to products
МС 35 exit button
Exit button МС 35 €8.90 inc VAT

МС 19В

SKU: UT-PBK-819B
  • Design with no mechanical bolt.
  • Stainless-steel face-plate.
  • Fits into standard single-gang box, Large round green color push button.
  • Two contact output, suitable for all kinds of locks.

find out about the price

Price valid only in the e-shop

3 People watching this product now!
Compare

Local Pick up (Tuuliku Tee 4)

0€

Parcel Machines (Itella Estonia)

2.99€

Parcel Machines (DPD Estonia)

6.10€

Payment Methods:

Features:

  • Design with no mechanical bolt.
  • Stainless-steel face-plate.
  • Fits into standard single-gang box, Large round green color push button.
  • Two contact output, suitable for all kinds of locks.
  • Aluminum panel with elegant style .
  • 500000 cycles tests

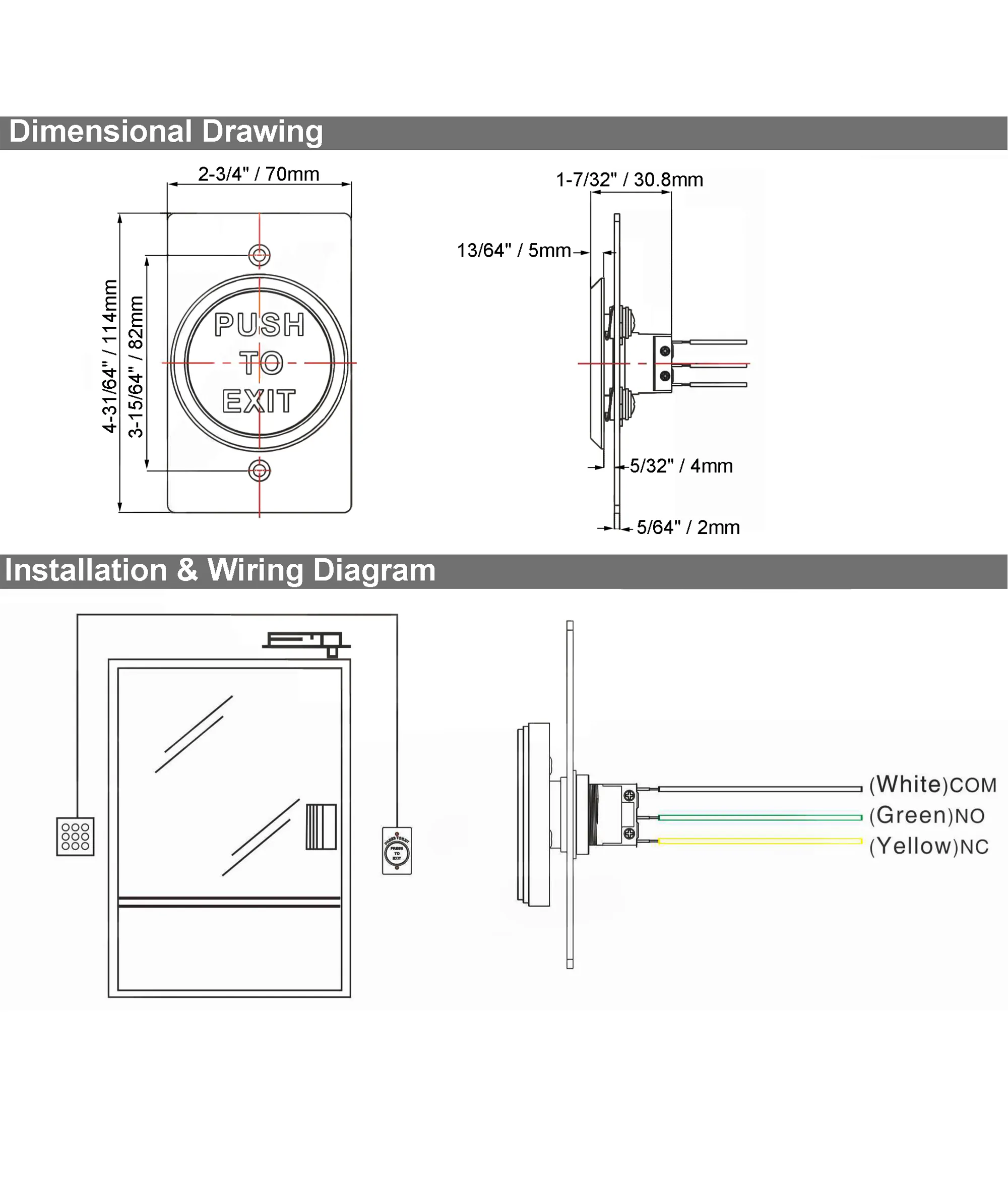

Specification:

  • Dimensions : 114Lx70Wx30.8H(mm) /4-31/64L”x2-3/4″Wx1-7/32H”
  • Standard structure: stainless steel
  • Current rating: 3A@36VDC
  • Output contact: NO/NC/COM
  • Mechanical life: 500000 tested
  • Operating temp: -20℃-~+50℃
  • Operating humidity: 0-95% RH
  • Panel Material : 304 stainless steel panel with wiredrawing finish
  • Switch Material: Plastic
  • 7-inch, AWG 22 wire leads
  • Weight: 240g/8.47oz

Package:

  • 1 x Exit Button
  • 1 x English manual
Dimensions 11.4 × 7 × 3.08 cm
