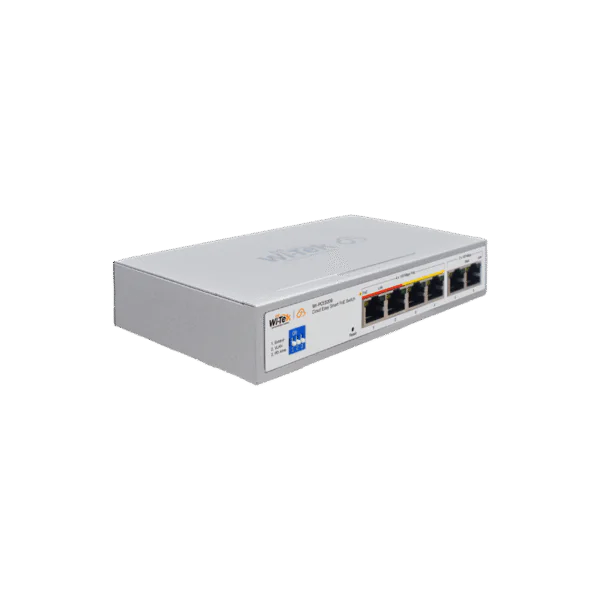

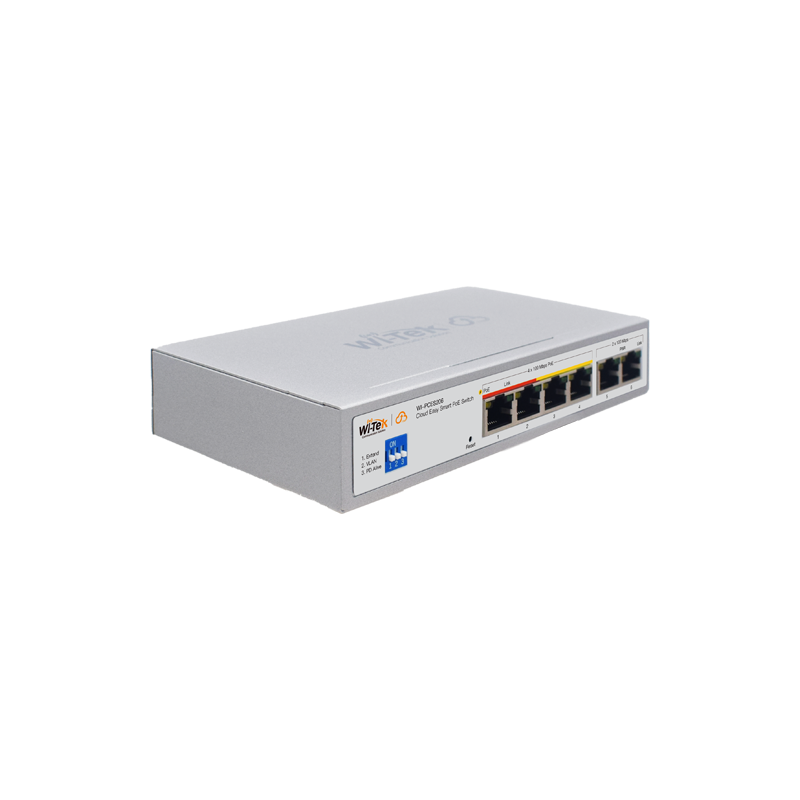

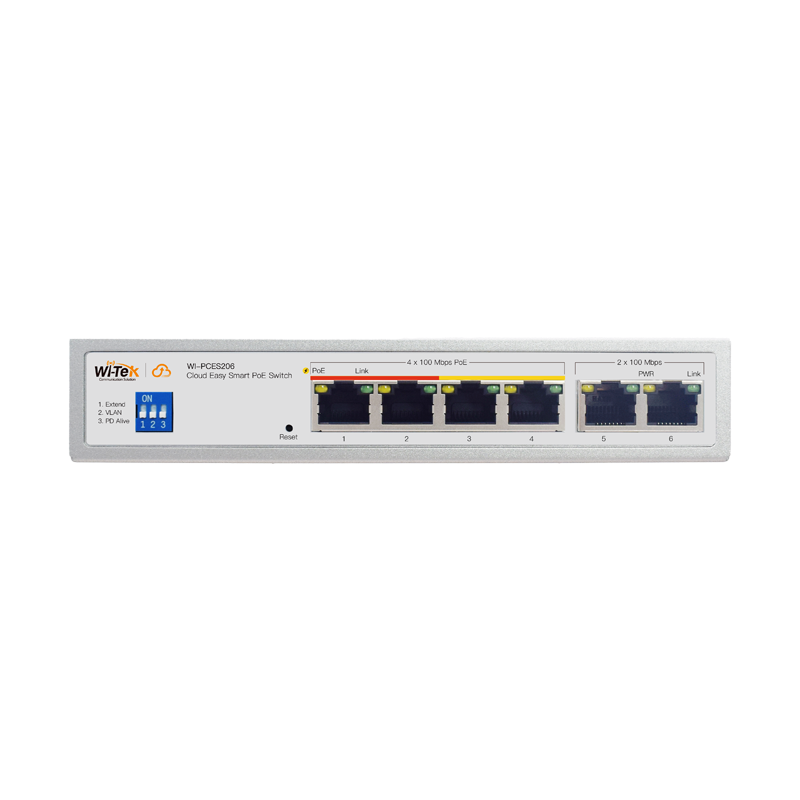

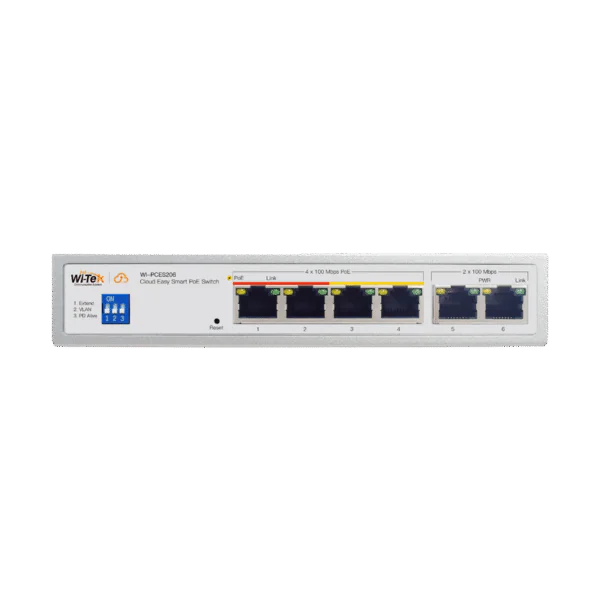

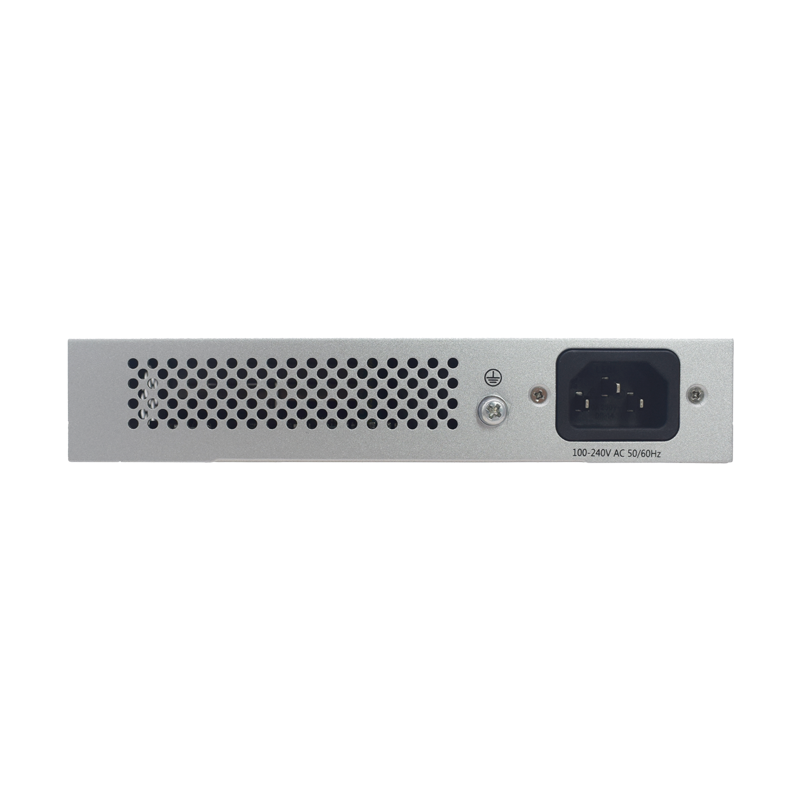

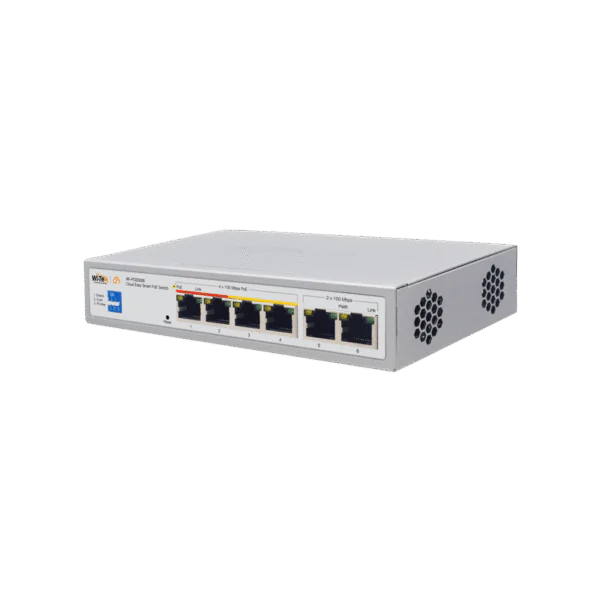

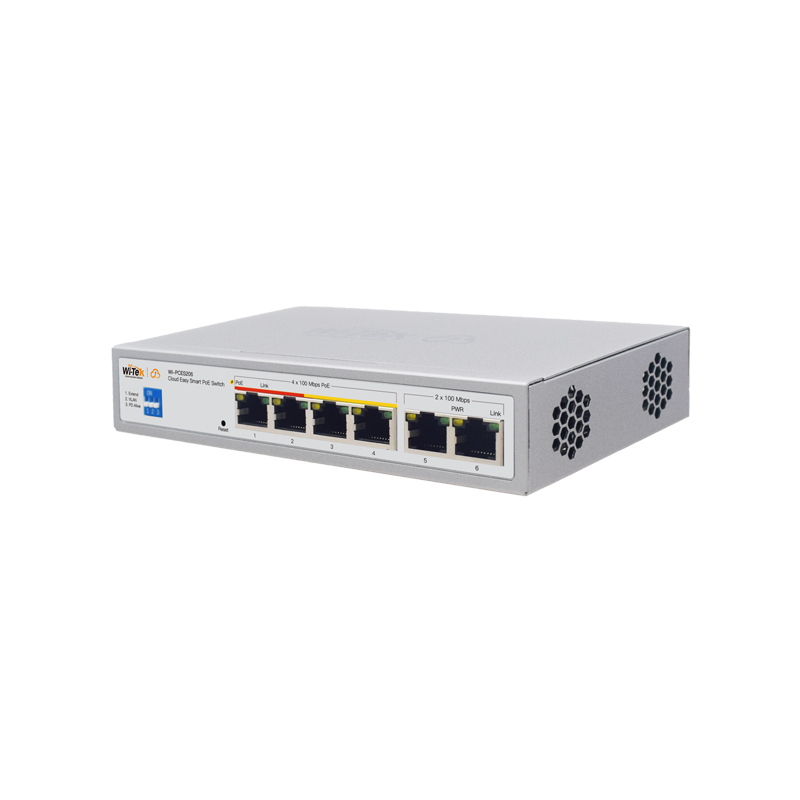

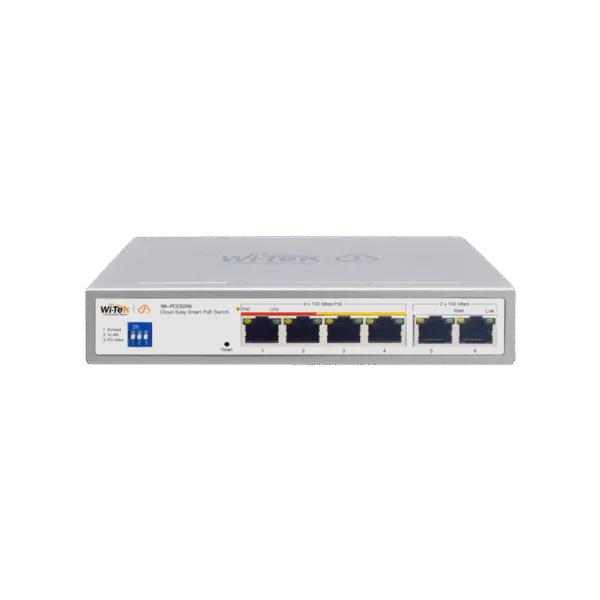

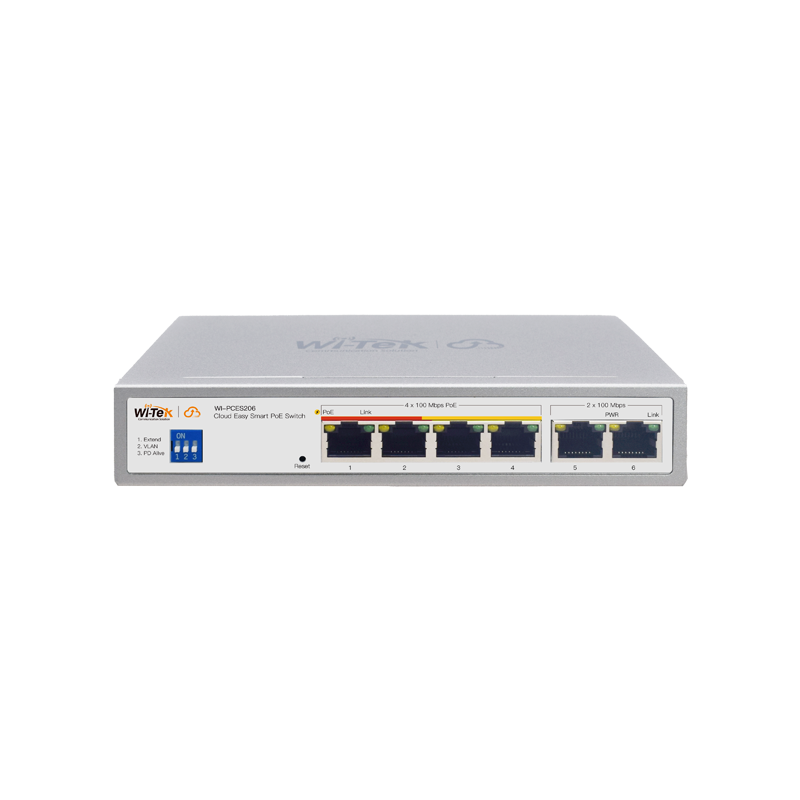

Smart Switch WI-PCES206
● Cloud easy smart 250m PoE switch
● 4 x 10/100Mbps RJ45 PoE Ports, 2*100Mbps RJ45 Ports
● Port1-2: Hi-PoE 45W, Port3-4: 802.3af/at
● Total power budget of up to 62.7W
● Support Wi-Tek Cloud management, mobile APP remote maintenance
● Smart DIP Mode: Extend mode, VLAN mode, PD Alive mode
● Support various real-time alarms, even novices can troubleshoot
● Support Onvif protocol to automatically identify IP camera, unique value for CCTV network
€39.00 inc VAT
Price valid only in the e-shop
Local Pick up (Tuuliku Tee 4)
Parcel Machines (Itella Estonia)
2.99€
Parcel Machines (DPD Estonia)
6.10€
Payment Methods:
Model: WI-PCES206
Hardware Version: V1
Hardware Features – Interfaces
-
Downlink Port: 4*10/100Mbps RJ45 PoE Ports
-
Uplink Port: 2*10/100Mbps Ethernet Ports
PoE
-
PoE Port: Port 1–4
-
PoE Standard:
-
Port 1–2: Hi-PoE 45W
-
Port 3–4: 802.3af/at 30W
-
-
PoE Pin Assignment: 1/2(+), 3/6(–)
-
PoE Power Budget: 60W
Performance
-
Flash: 16MB
Switch Property
-
Standards and Protocols:
-
IEEE 802.3 (Ethernet)
-
IEEE 802.3u (Fast Ethernet)
-
IEEE 802.3ab (Gigabit Ethernet)
-
IEEE 802.3af (Power over Ethernet)
-
IEEE 802.3at (Power over Ethernet Plus)
-
-
Forwarding Mode: Store and Forward
-
Switching Capacity: 1.2Gbps
-
Packet Forwarding Rate: 0.89Mpps
