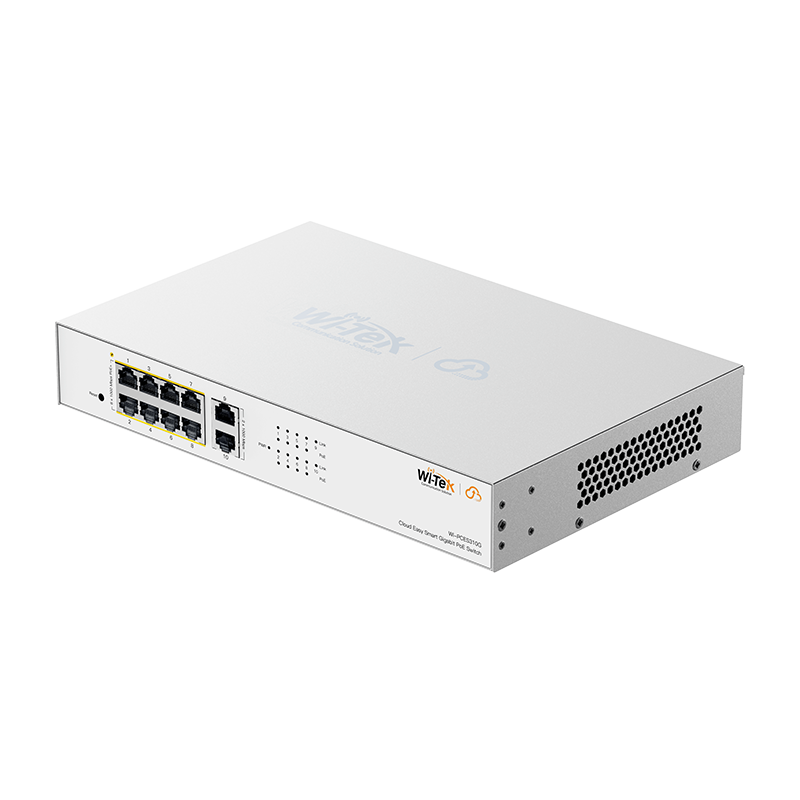

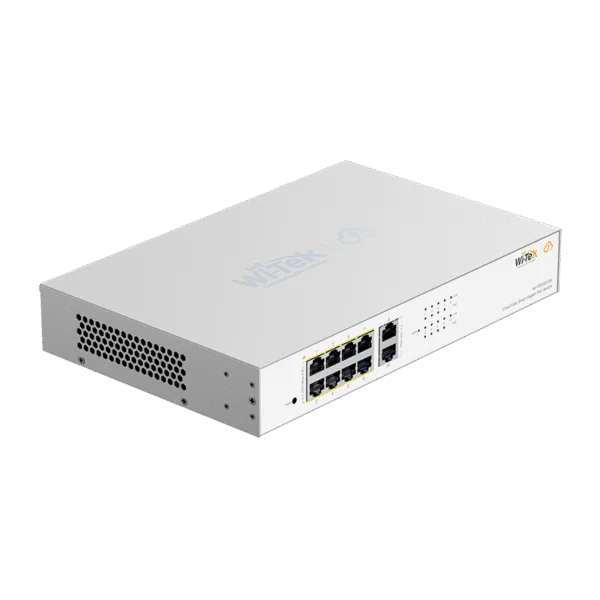

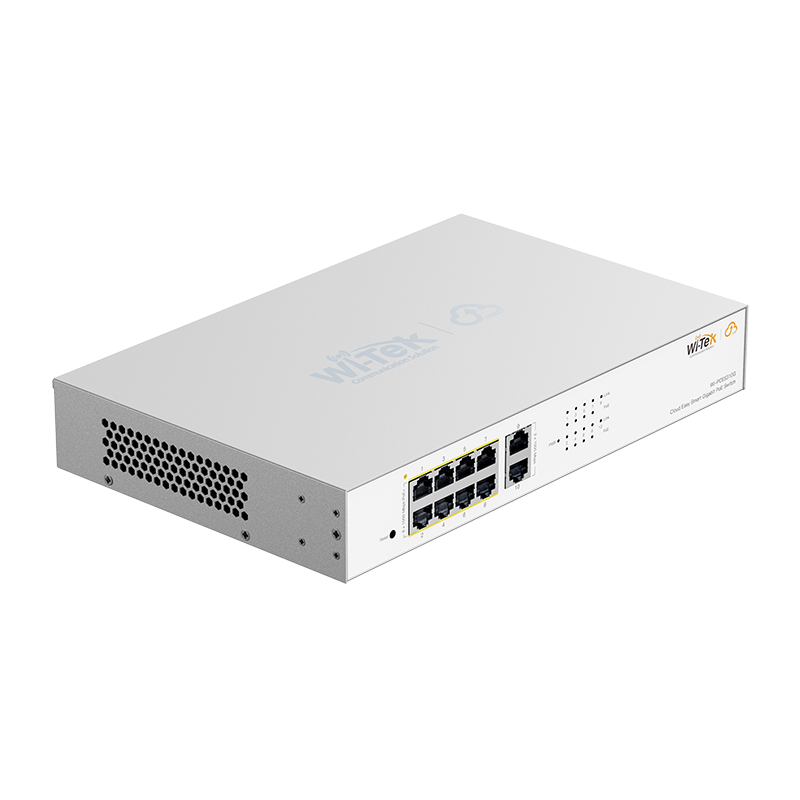

Smart Switch WI-PCES310G

Model
WI-PCES310G

Interfaces

• Downlink Ports: 8×10/100/1000Mbps RJ45 ports

• Uplink Ports: 2×10/100/1000Mbps RJ45 ports

PoE

• PoE Port: Port 1–8: 802.3 af/at

• PoE Standard: 802.3af/at

• PoE Power: 30W max for each port, 110W max (PoE power budget)

Performance

• Flash: 16MB

Switch Property

Standards and Protocols

• IEEE 802.3

• IEEE 802.3x

• IEEE 802.3ab

• IEEE 802.1q

• IEEE 802.3af

• IEEE 802.3at

• IEEE 802.3u

• Forwarding Mode: Store and Forward

• Switching Capacity: 20Gbps

• Packet Forwarding Rate: 14.88Mpps

• MAC Address Table: 8k

• Packet Buffer Memory: 4.1Mbit

• Jumbo Frame: 15KBytes

Power Supply

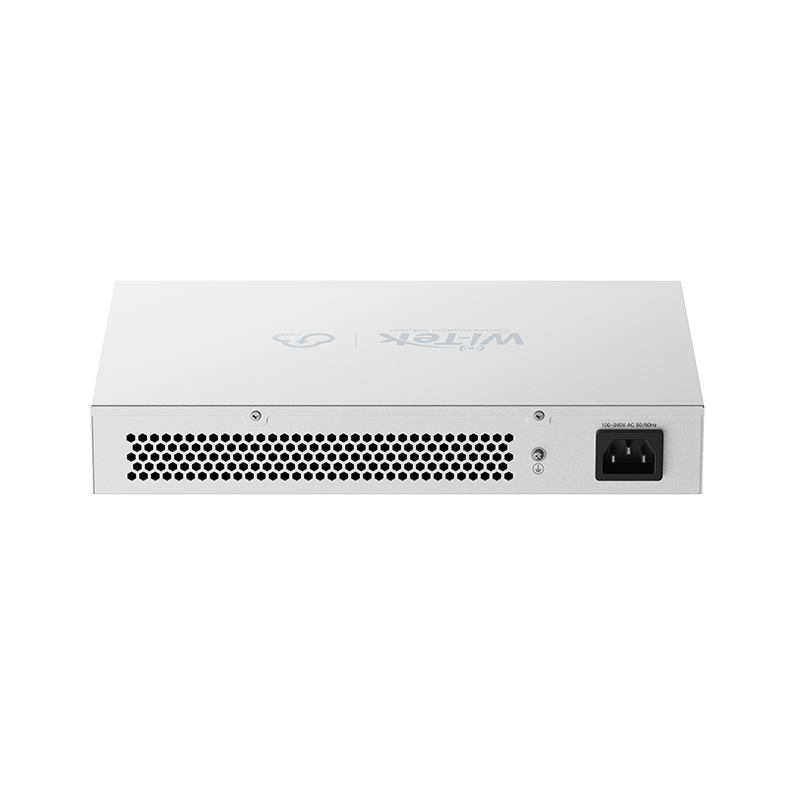

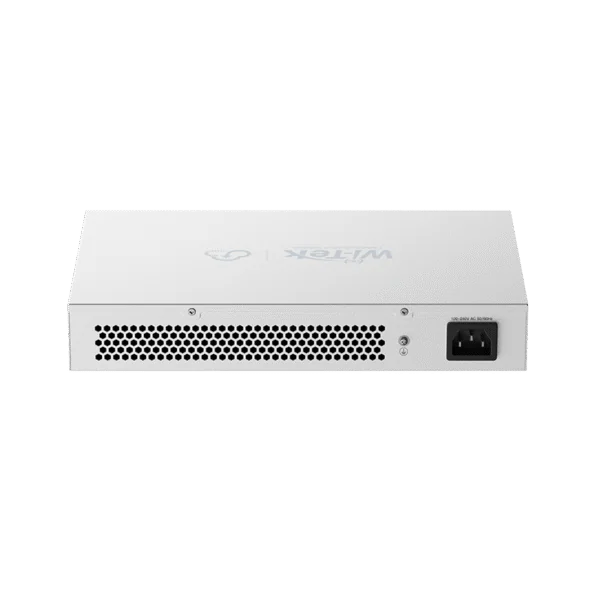

• Input Power: AC 100~240V 50/60Hz

• Power Consumption:

  • Idle: 7W

  • 100% Traffic Rate with PoE: 117W

Physical Characteristics

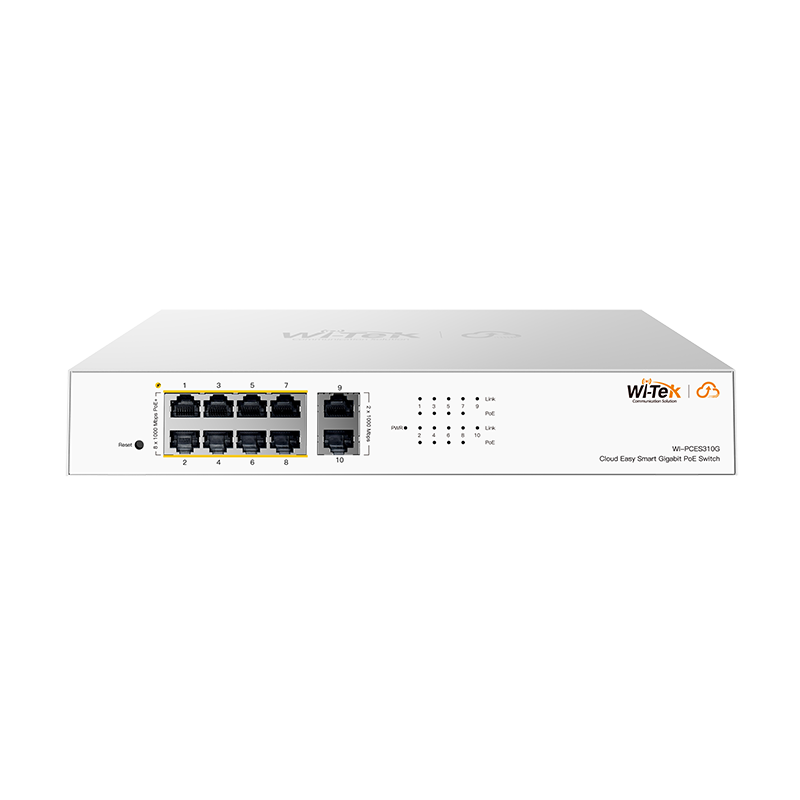

LED Indicators

• PWR:

  • On: The switch is powered on

  • Off: The switch is powered off or power supply is abnormal

• PoE:

  • On: PoE enabled

  • Off: PoE disabled

• Link:

  • On: Port connected

  • Off: Port disconnected

  • Blinking: Data transmission

Buttons

• Reset: Hold for >5 sec to restore factory default

Fan Quantity

• Fanless

Dimensions

• Switch Dimensions: 280×180×44mm

• Package Dimensions: 438×295×77mm

Weight

• Net Weight: 1.40kg

• Package Weight: 2.12kg

Installation

• Desktop, Rack-mounted
