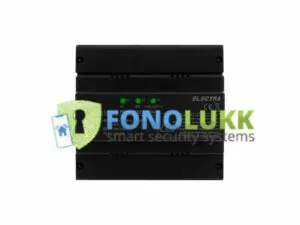

VIDEO CENTRAL UNIT – 1 OUTPUT, DIN RAIL MOUNTING, DARK GREY

SKU: SCU.VDR03.ELG14

Price valid only in the e-shop

1 People watching this product now!

Local Pick up (Tuuliku Tee 4)

0€

Parcel Machines (Itella Estonia)

2.99€

Parcel Machines (DPD Estonia)

6.10€

Payment Methods:

Core of the Video Intercom System

The central power supply unit is a key component of any Touch Line installation. With its structural and functional features, the central video unit plays a crucial role in the interaction, programming, and operation of all elements of the video intercom system.

Main Functions:

  • Power supply for the entire system: 13.5V / 2A
  • Direct connections for a single apartment (one-family) or a video connection hub
  • Separate connections for different lock types and an exit button
  • Additional connections for an external analog camera
  • Dedicated outputs for auxiliary commands: automatic gates, garage doors, lighting system
  • DVR compatibility
  • System diagnostics with LED indicators
  • Short-circuit protection for all connected components
  • Installation parameter programming

The central video unit with one output is designed for single-family homes and multi-apartment buildings.

Safety & Installation:

  • Flame-retardant casing | DIN-rail mounting
  • Meets international safety, compatibility, and fire resistance standards
  • UL-certified PCB
  • Can be mounted on DIN-rail or surface-mounted

Functions, Indications & Connections

Key Features of the 1-Output Video Unit:

  • Stable 13.5V / 2A power supply
  • Integration into intercom programming: terminal and panel addressing, configuration
  • Lock opening time setting: 1 to 10 sec
  • LED indicators for system status:
    • Mains voltage presence (110-230V AC, 50/60Hz) – Green LED
    • Stable voltage output (13.5V / 2A) – Green LED
    • Battery status and operation – Green LED
    • Programming mode entry – Red LED
    • Diagnostic & status indicators

Direct Connections for:

  • Power supply: 110-230V AC, 50-60Hz
  • Call panel
  • Single terminal (single-family) or connection box (multi-apartment) – OUT1
  • Three types of lock control:
    1. DC Lock (12V / max. 1A DC) – Relay closes upon activation; power supplied by the central unit
    2. AC Lock (max. 24V / max. 5A AC) – Relay closes upon activation; requires a separate power supply
    3. Electromagnetic Lock (max. 24V / max. 5A DC) – Relay opens upon lock activation or power loss; requires an independent power source
  • Exit button (for electromagnetic locks)
  • Analog external camera
  • Auxiliary relay for automation (gates, garage doors, lighting, etc.) – max. 24V DC/AC, 5A
  • Battery connection

Protections:

  • Short-circuit protection with diagnostics & LED indicators for panels, terminals, and DC locks
  • Overload protection (above 0.75A) with fault isolation
  • Battery overload protection (above 0.4A)
  • Reverse polarity protection for battery connection
Weight 0.5 kg
Dimensions 13 × 14 × 7.3 cm
