BVD-SM110R

Description:

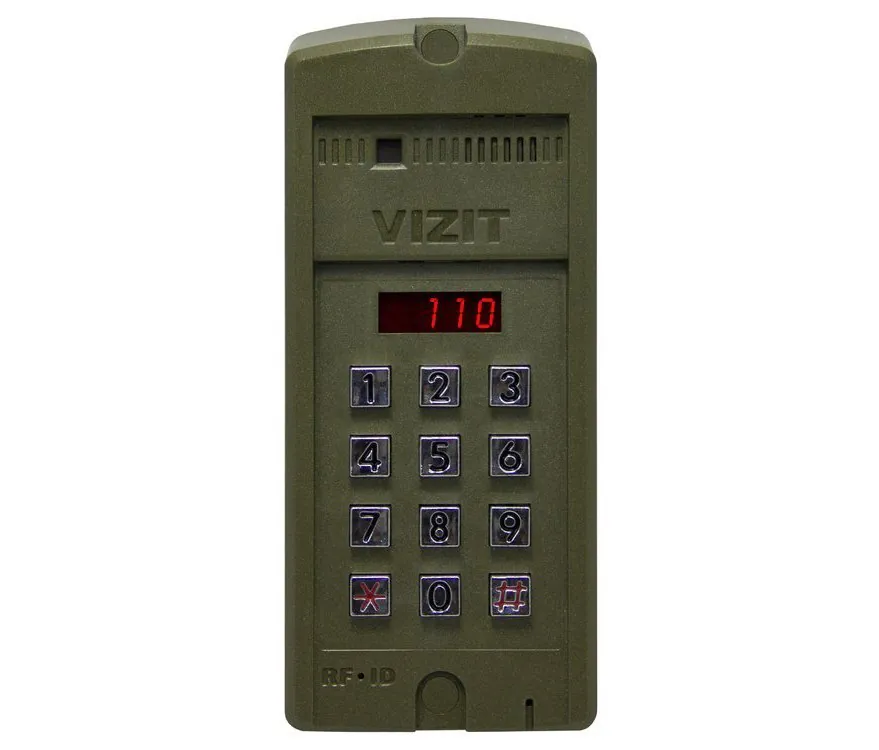

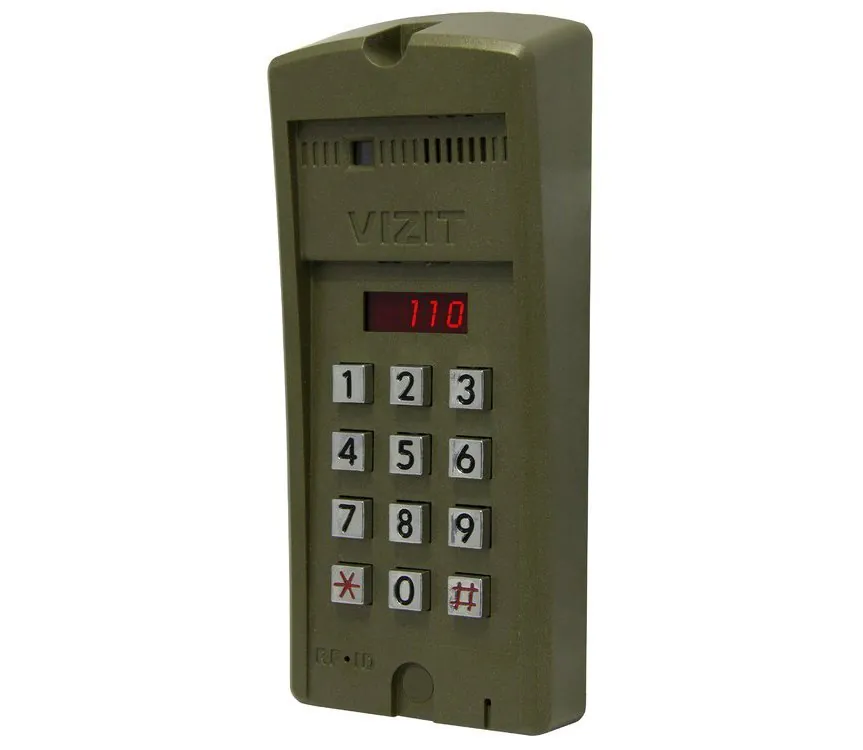

Doorphone outdoor panel BVD-SM110R

The BVD-SM110R outdoor panel is used in conjunction with the BPD18 / 12-1-1 power supply unit as an integral part of the VIZIT multi-apartment doorphone.

• number of subscribers – up to 100;
• duplex speakerphone;
• 4-digit LED display;
• keyboard backlight;
• built-in VIZIT-RF2 key reader (RFID-125 kHz EM-Marin key fob);
• memory for 600 keys VIZIT-RF2 (RFID-125 kHz);
• number of keys for one apartment number – 6;
• work with the VIZIT concierge console;
• the body is made of impact-resistant plastic “polycarbonate”, resistant to weathering;

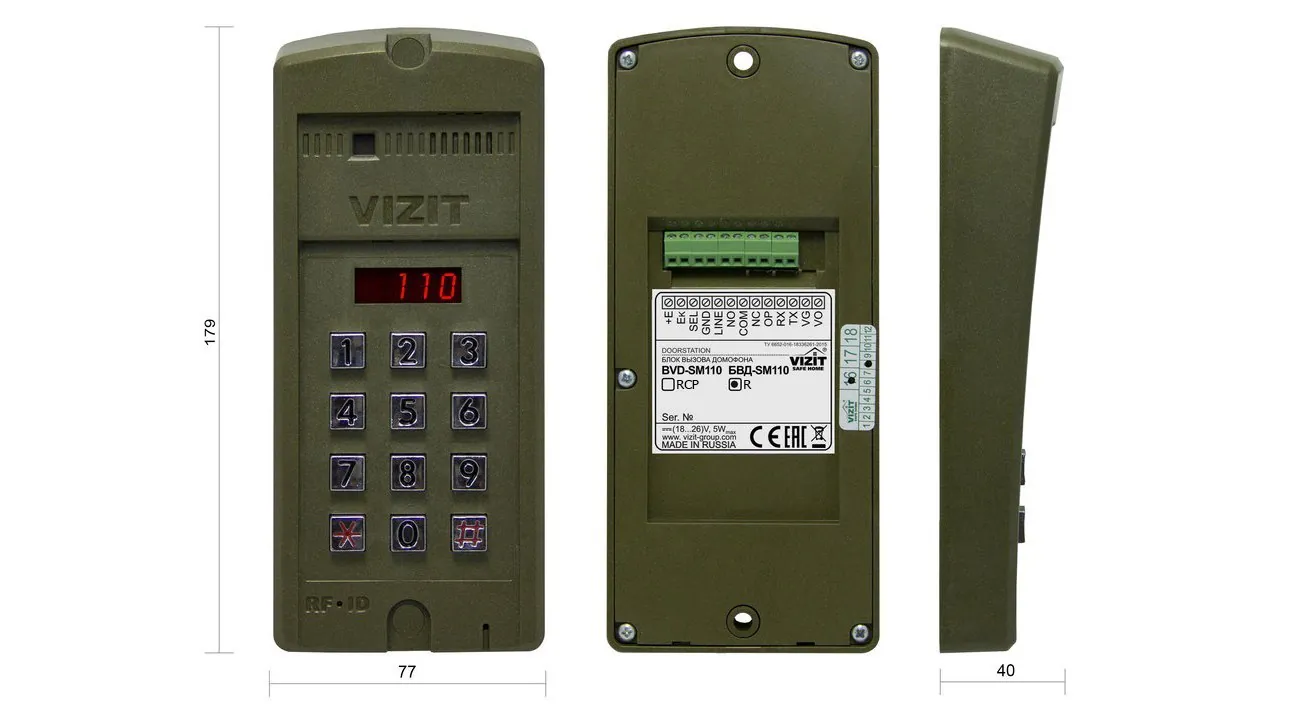

• overall dimensions, mm, (WxHxD) – 77x179x36;
• installation option – invoice;
• supply voltage, V: 22 ± 4;
• power consumption, W, no more: 5;
• operating temperature range, ° С – from minus 30 to plus 45.

The operating instructions (passport) of the product are given on the additional technical information page

BVD-SM110R

1 file(s) 777.31 KB

Download
