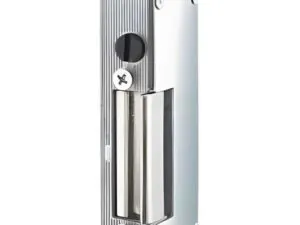

DORCAS 62ND412
This series is unique, for outdoor use and rooms with high humidity. The latch model has a special design for outdoor conditions: a rubber seal between the cover and the body, a sealed baffle with a control pin. There are left or right (in the designation of the prefix Din Right or Din Left ). Supplied with long bezel G62.
Only 1 left in stock
€77.50 inc VAT
Price valid only in the e-shop
Only 1 left in stock
1 People watching this product now!
Devices Type: Normal – Closed
Options; Tongue adjustment (F): No
Options; Mechanical release (D): Yes
Options; Caging (A): No
Options; Bolt position sensor (305): Yes
Options; Reinforced power coil (412): Yes
Current supply: 12VAC/12VDC
Thickness in mm: 21.50
Height in mm: 100.00
Depth/Width in mm: 37.00
Cycle loading test in the factory: 300000
Operating temperature range: -15 °C to +40 °C
Mounting position: Left or Right
Installation: mortise
Frame: Asymmetric
Tensile strength: 400 kg
