Description

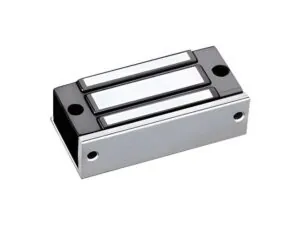

EL 270L Magnetic Lock
Holding force: 270 kg
Power supply voltage: 12 V (post. current)
Current consumption: 500 mA
Monitoring: None
Operating temperature range: -10 to +55 °C
Operating humidity range: 10% – 90%
Material: Anodized aluminum
Dimensions: 250 x 42 (+5) x 25 mm (lock), 180 x 38 x 12 mm (anchor)
Weight: 2.15 kgs
