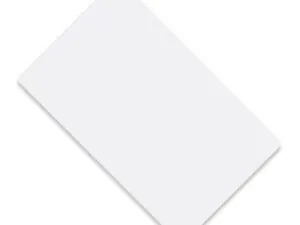

IL-06 card of ISO form-factor (ISO/IEC 7810 ID-1) or “thin” card is an affordable proximity card for use in access control systems. The card has protection from electromagnetic fields and static electricity. Personalization is performed by thermal printing, screen printing or offset printing.
| Operating temperature (°C) | –30…+55 |
| Storage temperature (°C) | –40…+75 |
| Material | PVC |
| Dimensions (mm) | 86х54х0.75 |
| Weight (g) | 5.8 ± 0,5 |
| Standard | EM Marine, Mifare Classic 1K |
| Chip | TK4100, TKS50 |
| Operating frequency | 125 KHz, 13.56 MHz |
| Functions | Read, Write |

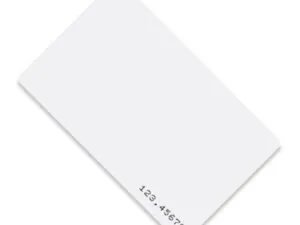

| Printed number | Yes |
| Form factor | ISO |
| Printing features | Thermal printing, Serigraphy, Offset printing |
| Memory size (bytes) | 1024 |
| Anticollision | Yes |
| Brand |
|---|
