Description

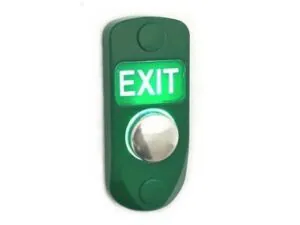

Invoice button. Material: aluminum alloy. Led illumination of the button contour. It is used for direct control of an electro-mechanical lock, as well as for controlling an electro-magnetic lock. When working with inductive load, it is recommended to use an additional protective diode. Included: button, instructions, installation stencil.
Technical characteristics:
- Contacts: normally open (BUT)
- Maximum switching voltage 36V
- Maximum switching current 2A
- Resource when working on the active load current is 2A – 1 000 000 switching
- Illumination supply voltage 12 V
