MF 1 mini

Technical Specifications:

• Operating frequency: 13.56 MHz

• Supported tag types: Mifare Ultralight, Mifare Standard (Classic) 1K and 4K, Mifare ID

• Reading range: 1–4 cm

• LED indicator: Available

• Backlight: Constant red light (optional)

• Power supply voltage: 8–18 V DC

• Average current consumption: 45 mA

• Maximum current consumption: 200 mA

• Housing material: Polycarbonate

• Housing color: Black

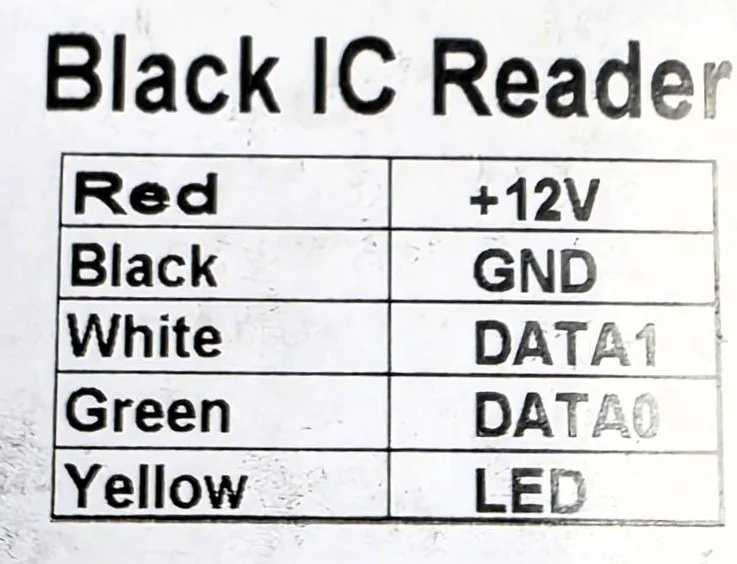

• Output interface: Dallas Touch Memory, Wiegand 26

• Maximum cable length from reader to controller:

  • Dallas Touch Memory: up to 15 m

  • Wiegand: up to 100 m
