Digital intercom INS-UP720MR
NB! Not all apartment intercom handsets are interchangeable! Please note that an incorrectly connected apartment handset may damage the entire apartment building’s intercom system. Before purchasing, make sure the device is compatible with your apartment building’s system or consult our specialist.

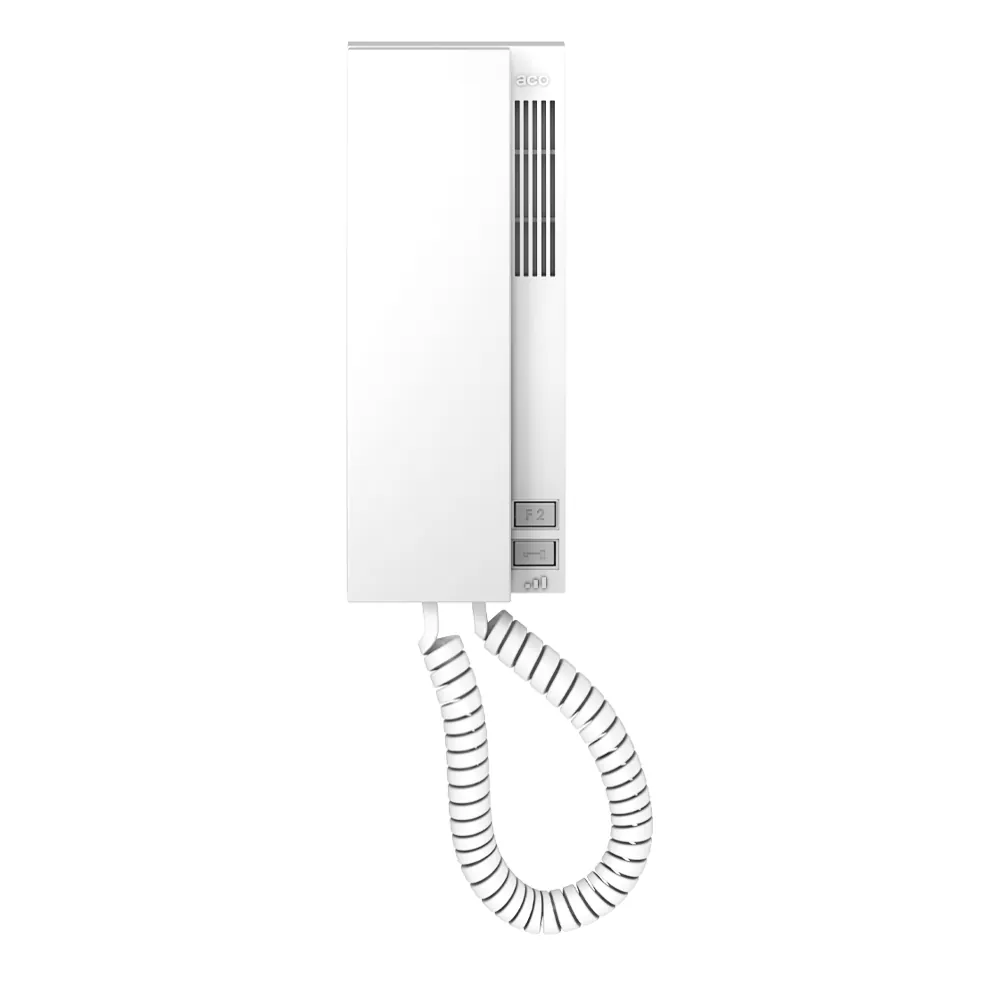

Handheld console with magnetic mounting bracket and two buttons.
ACO receivers are robust devices made from high-quality materials, functional and easy to use. Their minimalist design
allows the devices to be used in a variety of ways for different types of investments.
Price valid only in the e-shop
Local Pick up (Tuuliku Tee 4)
Parcel Machines (SmartPosti)
2,99€
Parcel Machines (DPD Estonia)
6,10€
Payment Methods:
Index
INS-UP720MR
Description
Digital intercom with magnetic handset hang-up and doorbell function
Execution
ABS plastic housing
Available colors
White
Hanging up the phone
Magnetic
Installation method
Surface mounted

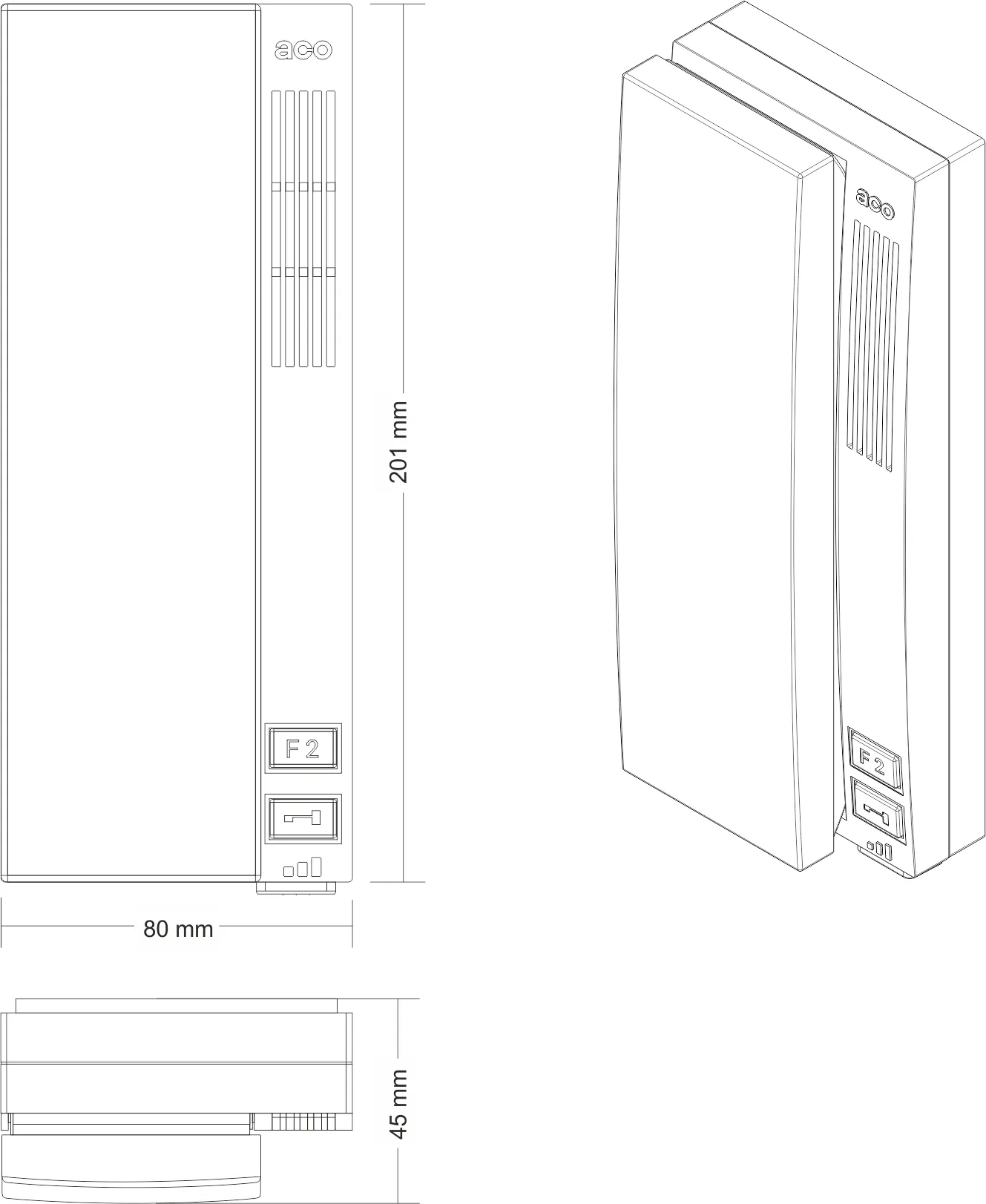

Dimensions (mm)
201 × 80 × 45

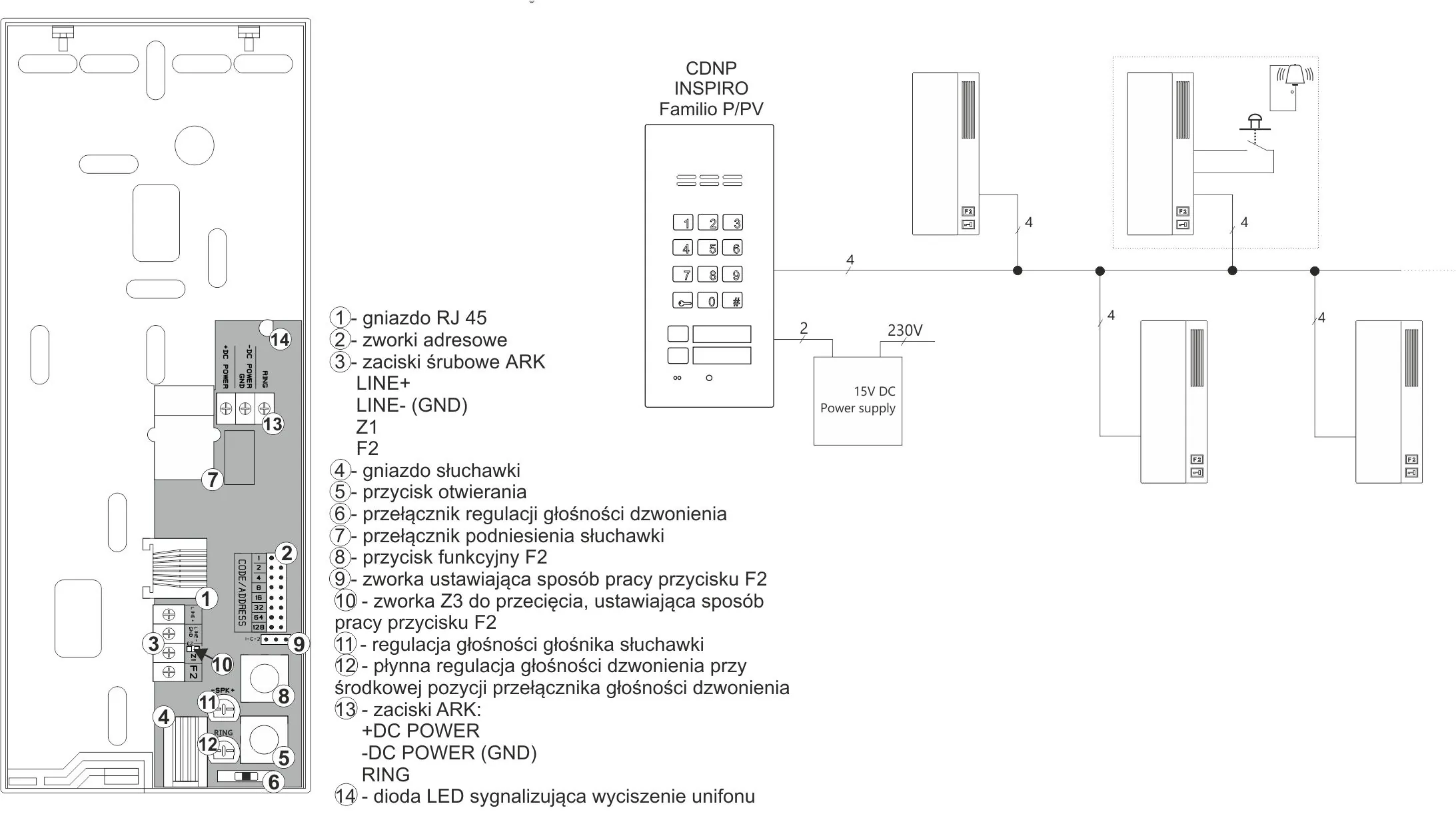

Installation type
Digital: 2 wires + power supply
Power supply
15 V DC (min 12 V; max 18 V), 50 mA
Power consumption in standby mode
~0.1 W
Entrances
1 × RJ45 socket
Screw terminals (ARK)
1 × doorbell contact (NO)
Exits
F2 button:
1 × NO contact isolated from the system
Via system bus (CDN-I/O)
Characteristics
Magnetic handset hang-up mechanism
2 buttons: door unlocking, external device control (for some panels or models, an optional CDN-I/O relay module is required)
Home automation unlocking or control without an active connection
Doorbell function
Individual handset volume adjustment
Possibility to control multiple receivers under a single address
3-step volume adjustment
Hold function – allows hanging up the handset without disconnecting the call
Home automation – control of external devices such as gate, barrier, lighting, shutters
Compatible with all digital devices from the following groups: CDNP, Inspiro, and Familio P/PV
Optical signaling of muted handset
