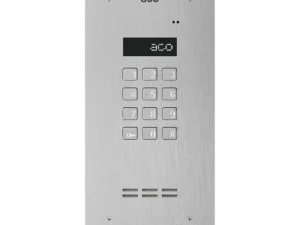

Video doorphone INSPIRO PMR 2+

Index
INSPIRO PMR 2+ (G2) (master/slave unit)
INSPIRO PMR 2+ (master unit)
INSPIRO PMR 2S+ (slave unit)

Description
Digital video intercom with keypad, module for people with disabilities, electronic directory, and proximity reader.

Execution
2 mm flat front panel with backlit brushed stainless steel buttons.

Available language versions

• PL-EN-DE-FR

• PL-EN-DE-SV

• EN-LT-IT-HU

Modules

• DM – Accessibility module (INS-DM): T-coil loop, speech synthesizer (voice prompts), and three LEDs for optical signaling.

• 230E – Electronic alphabetical tenant directory

• Keypad lock – Individual 4-digit unlock code per apartment

• ACC – Unique 125 kHz proximity reader

Display
Heated LCD

Maximum number of users
Up to 1020 rooms

Installation method
Flush-mounted

Dimensions (mm)

• Panel: 111 × 474

• Flush mounting box: 92 × 455 × 31.5

Installation type
Digital: twisted pair, category 5e or 6

Line length
Max. 1000 m

Power supply
15 V DC / 1.25 A

Power consumption in standby
~1.9 W

Outputs

• 2 × screw terminals “ELOCK”: for connection of traditional electric strike (max 1 A), fail-safe lock (max 0.5 A), or CDN-PK relay module (max 5 A)

• 2 × screw terminals: for audio signal – “LINE+” and “LINE– (GND)”

• 2 × screw terminals: for second relay output – “N” and “NO” (max 2 A, 30 VDC) – only on master units

Inputs

• 4 × screw terminals: for power connection – “+DC” and “GND”

• 1 × screw terminal “INPUT”: for a normally open button (NO) – triggered by shorting to system GND (e.g., external door release button)

• 1 × screw terminal: audio signal from previous panel (Master Line) – “ML+” (slave only)

• 2 × “EXTMOD” sockets for optional modules

Accessibility features

• Backlit keypad buttons, optionally with Braille

• Optical and acoustic signaling (voice messages) for panel functions

• Automatic or remote door opening without answering a call

• Option to connect an additional acoustic or optical signaling device indoors (CDN-U)

Features

• Weather-resistant and vandal-resistant

• Configurable 6-digit apartment numbers

• 4 independent code tables

• Supported codes:

  • 1020 tenant codes (4-digit)

  • 5 administrator codes (4- or 6-digit)

  • 1 installer code (8-digit)

• Programmable main screen message (up to 30 characters)

• Adjustable maximum talk time (40–120 seconds)

• Support for many expansion modules to increase functionality

• Master/Slave/Multimaster input configurations

• Optional SW4S-DIN module required for 1020 apartments

• Unlocking electric strike or relay output without active call (via CDN-I/O)

• Home automation control (gates, barriers, lighting, shutters) via keypad or receiver, including:

  • Gate opening – triple key press

  • External device control (via CDN-I/O module) – triple key press

  • Per-room control permissions for external devices

• Multiple receivers can be assigned the same number using active receivers

• Extensive per-room configuration options

• Intuitive and user-friendly operation and configuration

• Ability to change call number ranges and call groups

• Up to 8 preconfigured numbers that can be dialed without speaking

• Automatic door release for specific rooms

• Corridor unlocking function

• Concierge function

• During call transfer to concierge, the panel can display any custom 6-character message

• Adjustable number of door releases per call (1–3)

• Supports a variety of electric and electromagnetic locks

• 8 priority extension numbers with individual call settings

• Call forwarding to extensions

• Built-in T-coil (induction loop) marked with international symbol – transmits audio directly to hearing aids

• Built-in optical indicators:

  • Red LED: call initiated

  • Yellow LED: call answered

  • Green LED: door opened

• Built-in speech synthesizer with voice messages:

  • “Dialing, please wait” (when calling an apartment)

  • “Door is open, please enter”

  • “Number unavailable, please try again later”
    Available in Polish, English, and French, depending on language settings

• Programmable from a PC without external power

• Programmable via control panel or with a USB cable

• Free configuration software available

• Fully compatible with all digital devices from the CDNP, Inspiro, and Familio P/PV product lines
