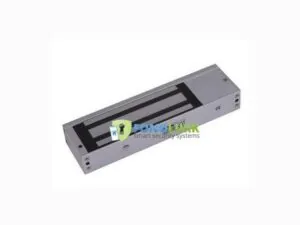

Magnetic lock 350kg

Magnetic lock 350kg

Holding force 350 kg
Universal power supply 12 or 24 V
Two-color indicator
Design to overcome the ice of the magnetization
Output of the anchor clip and power monitoring relay
Grey sensor for monitoring the lock status
The lock body is made of anodized aluminum
Adapters for installation on doors that open both outside and inside, as well as on glass doors

Power consumption: 500/250 mA
Control: relay: GEN, NO, NC / 3 A, 30 V (AC / DC)
Operating temperature: -10 to +55 ° C
Working humidity: 10% – 90%
Material: anodized aluminum
Dimensions: 250 x 57 (+6) x 32 mm (lock), 158 x 52 x 11 mm (anchor)
Weight: 2.8 kg
Optional: 350L-L adapter for outward-opening doors
350Z-Z anchor adapter for inward-opening doors
U-U transition anchors for glass doors 10-20 mm
