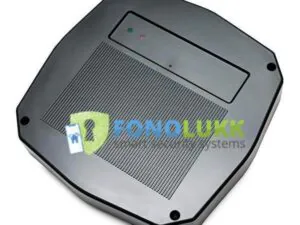

The UHF Matrix IV RF reader is designed for use in online and offline access control systems.
The Matrix IV RF reader is equipped with an internal antenna that allows a reading range of up to 50 m when using the IL-100 remote control, and an SMA-F connector for an external antenna to increase the reading range. You can the sensitivity of the receiver to the reader.
The Matrix IV RF reader supports standard Keeloq / CAME (TOP432NA, TOP434NA) 433 MHz remote controls and can connect to 1 or 2 controllers via iButton (2 connectors), Wiegand-26 (2 connectors) or RS-485 protocols. The reader has 2 separate remote control transmission channels, which you can configure in the way the code is transmitted:
- type of remote control received: all / only IL-100 (anticlon) / all, except for IL-100;
- valid remote control buttons: any combination of buttons (for example, 1 and 4, only 2, etc.);
- Transmitting the button code together with the remote control code: on / off.
goal | ACS reader |
Working frequency | 433 MHz |
Key types | Keelok, ARRIVED (TOP432NA, TOP434NA) |
Standard reader | Keelok, Came |
Reading protocol | iButton (1-Wire), Wiegand-26, RS-485 |
Keeloq reading range (m) | <50 (IL-100 remote control) |
Keyboard | No |
Vandal-proof housing | No |
Waterproof dust cover | Yes |
Key copy protection | Yes |
Copy protection type | Keeloq Anti-clone (IL-100 remote only) |
